RECESSED LUMINAIRES
Inspiration of Simplicity
Types & Designs
Mir Downlight
Max 40W, 3000K, 4000K, CRI80+ 230mm diameter and 210mm cut hole,
On/Off, DALI, Touch Dim and Triac Dimmable Options

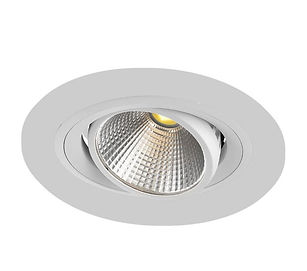

Vega Adjustable Recessed
Max 40W; 2700K, 3000K, 3500K, 4000K, 5000K CRI90+, B.A: 24, 36, 55 degree Reflector Optic
On/Off, DALI, Touch Dim and Triac Dimmable Options
Geo Adjustable Recessed
Max 32W; 2700K, 3000K, 3500K, 4000K, 5000K CRI90+, B.A: 15, 24, 36, 45, 55 degree Reflector Optic
On/Off, DALI, Touch Dim and Triac Dimmable Options
Altera
6W/8W/10W, 85mm diameter, 2700K, 3000K, 3500K, 4000K, CRI90+, B.A: 24, 36 degree Reflector Optic
On/Off, DALI, Touch Dim and Triac Dimmable Options
Ark Uno Adjustable Recessed
Max 40W; 2700K, 3000K, 3500K, 4000K, 5000K CRI90+, B.A: 15, 24, 36, 55 degree Reflector Optic
On/Off, DALI, Touch Dim and Triac Dimmable Options
Ark Duo Adjustable Recessed
Max 2x40W; 2700K, 3000K, 3500K, 4000K, 5000K CRI90+, B.A: 15, 24, 36, 55 degree Reflector Optic
On/Off, DALI, Touch Dim and Triac Dimmable Options
Geo Uno Adjustable Recessed
Max 32W; 2700K, 3000K, 3500K, 4000K, 5000K CRI90+, B.A: 15, 24, 36, 45, 55 degree Reflector Optic
On/Off, DALI, Touch Dim and Triac Dimmable Options
Geo Duo Adjustable Recessed
Max 2x32W; 2700K, 3000K, 3500K, 4000K, 5000K CRI90+, B.A: 15, 24, 36, 45, 55 degree Reflector Optic
On/Off, DALI, Touch Dim and Triac Dimmable Options
Geo Trio Adjustable Recessed
Max 3x32W; 2700K, 3000K, 3500K, 4000K, 5000K CRI90+, B.A: 15, 24, 36, 45, 55 degree Reflector Optic
On/Off, DALI, Touch Dim and Triac Dimmable Options
Geo Quatro Adjustable
Max 4x32W; 2700K, 3000K, 3500K, 4000K, 5000K CRI90+, B.A: 15, 24, 36, 45, 55 degree Reflector Optic
On/Off, DALI, Touch Dim and Triac Dimmable Options
Art Uno Adjustsable Recessed
Max 10W; 2700K, 3000K, 3500K, 4000K, CRI90+, B.A: 24, 36 degree Reflector Optic
On/Off, DALI, Touch Dim and Triac Dimmable Options
Art Duo Adjustsable Recessed
Max 2x10W; 2700K, 3000K, 3500K, 4000K, CRI90+, B.A: 24, 36 degree Reflector Optic
On/Off, DALI, Touch Dim and Triac Dimmable Options
Gem Square Downlight
Max 27W; 2700K, 3000K, 3500K, 4000K, 5000K CRI90+, B.A: 45 degree TIR Lens Optic
On/Off, DALI, Touch Dim and Triac Dimmable Options
Slim Downlight
6W/12W/18W/24W; 3000K, 4000K, 6500K
120mm/170mm/223mm/300mm diameter x 20mm,
Cut Holes: 110mm/155mm/205mm/280mm
Design Options
Adjustable frame width
Motion Sensor
3h battery pack
Additional frames
Microprism or Opal Diffusor option is available for all sizes recessed luminaires
Standard Colors
Standard RAL Codes: RAL 9016 White, RAL 9005 Black, RAL 9006 Gray
